Exercise Bike Saddle Adaptor Kit Installation
Remove current saddle and any loose shims or additional
Bolt the adaptor plate (white) to current bike
post/plate using nuts, bolts and washers provided. Use adjustable wrench
to tighten nuts securely.
Insert or check to make sure the (black
or silver) round post adaptor is attached to the round saddle rails.

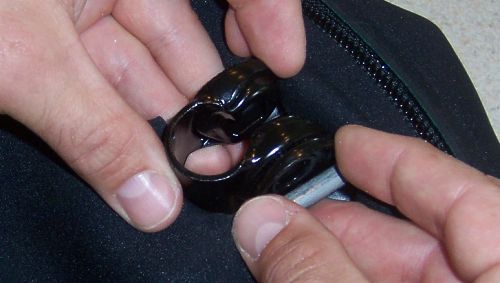

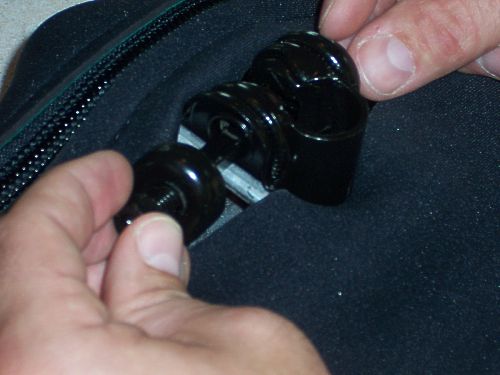

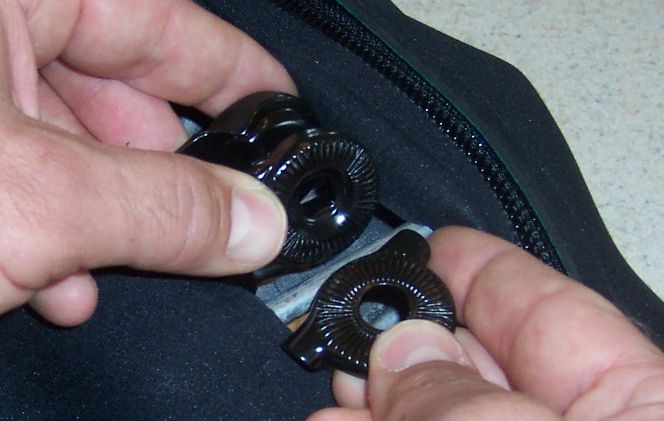

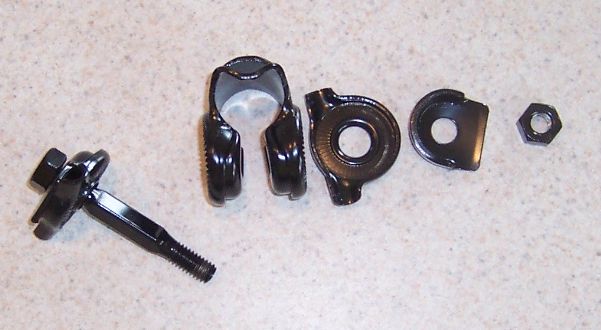

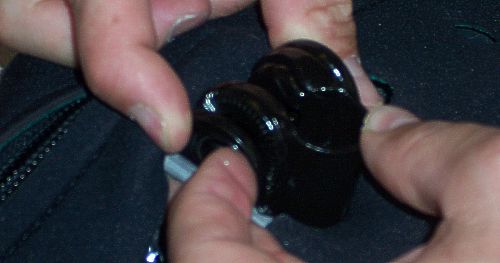

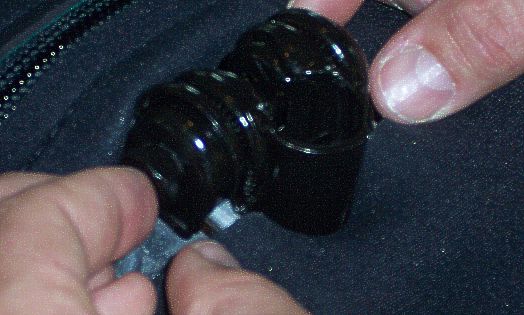

If not already installed, remove nuts and center connecting rod,
separate individual parts and insert between rails as shown in
instruction photos. Re-install connecting rod and nuts.

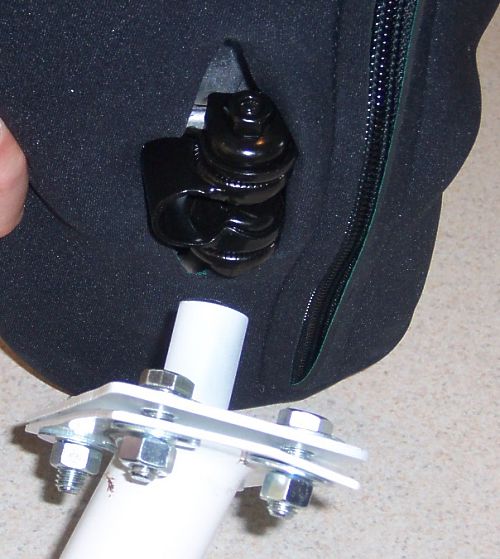

Slide black adaptor and saddle onto
white adaptor plate.
Rotate saddle from side to side, front to back, and
up and down, to position saddle in proper position according to enclosed
instructions. Saddle should tilt very slightly down to the front.

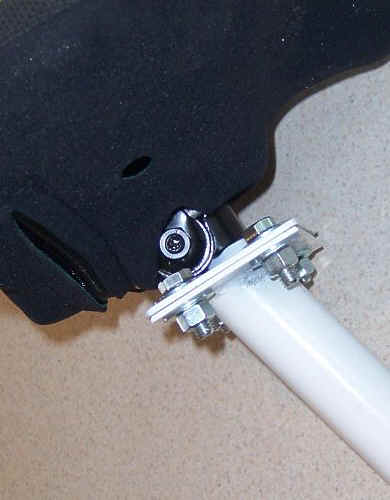

Tighten black nuts on both sides of black adaptor
until tight and saddle does not move.
You may need to lower your large saddle post 3 to
5 inches to accommodate the adaptors and new saddle.
Check nuts after 1 week and tighten as necessary.
If you need assistance, call customer service Toll
Free (855) 855-1976
